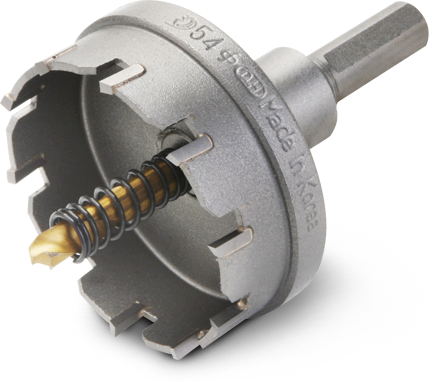

- DH-412Carbide Tipped
Hole SawT.C.T. HOLESAW
- Material
- Using tools
- Rotary electric drills (hand drills)
- Drill presses
- Magnetic drill presses
- Various machine tools
- Properties
- Carbide hole saws are for stainless steel plates. The plates are cut sharply.
- Simultaneously, the saws have excellent durability.
- Possible for simple drill work until 4㎜ in depth about thin stainless steel plates and metal plates
- It is faster than a HSS hole saw. The plates are cut sharply.
- By outstanding durability, the materials are cut cleanly.
- Loading of an ejector spring for the protection of a carbide tip and smooth emission of chips
- Cautions
- In installing the chuck of an electric drill, match the eccentricity well.
- Do not swing the saw from side to side or do not twist it in drilling work.
- Do not do consecutive work in a state of applying force compulsorily.
- Unavailable for not flat surfaces but bumpy parts and pipes (steel pipes, stainless steel pipes, etc.)
- Effective when cutting oil is used on the working part
- Please be careful that the hole saw does not drastically touch a processing matter after the penetration of the pilot drill (damage to the carbide tip due to a shock)
- In consecutive work, maintain low speed. It should be used fitting to the rotation speed according to workpieces.
- It should be used in low speed as the size of hole saws becomes bigger.
- Use and materials
- Possible for drill work about tiles, gypsum boards, asbestos plates, artificial marble (~4㎜), etc.
- Power distribution boards, operating panels, control panels, stainless steel plates, FRP, cast iron slabs, aluminum plates, zinc iron plates, etc.

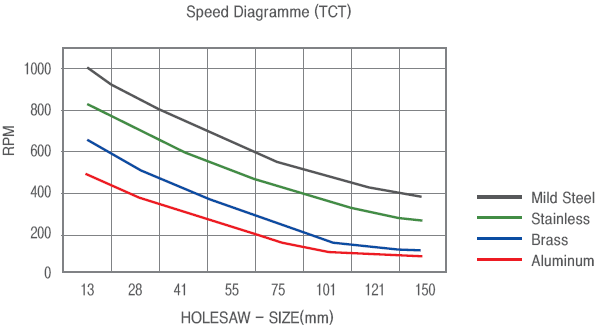

- Reasonable RPM
Product code |
Diameter |
412-013 |
Φ13 |
412-014 |
Φ14 |
412-015 |
Φ15 |
412-016 |
Φ16 |
412-017 |
Φ17 |
412-018 |
Φ18 |
412-019 |
Φ19 |
412-019.5 |
Φ19.5 |
412-020 |
Φ20 |
412-021 |
Φ21 |
412-022 |
Φ22 |
412-023 |
Φ23 |
412-024 |
Φ24 |
412-025 |
Φ25 |
412-025.4 |
Φ25.4 |
412-026 |
Φ26 |
412-027 |
Φ27 |
412-028 |
Φ28 |
412-029 |
Φ29 |
412-030 |
Φ30 |
412-031 |
Φ31 |
412-032 |
Φ32 |
412-033 |
Φ33 |
412-034 |
Φ34 |
412-035 |
Φ35 |
412-036 |
Φ36 |
412-037 |
Φ37 |
412-038 |
Φ38 |
412-039 |
Φ39 |
412-040 |
Φ40 |
Product code |
Diameter |
412-041 |
Φ41 |
412-042 |
Φ42 |
412-043 |
Φ43 |
412-044 |
Φ44 |
412-045 |
Φ45 |
412-046 |
Φ46 |
412-047 |
Φ47 |
412-048 |
Φ48 |
412-049 |
Φ49 |
412-050 |
Φ50 |
412-051 |
Φ51 |
412-052 |
Φ52 |
412-053 |
Φ53 |
412-054 |
Φ54 |
412-055 |
Φ55 |
412-056 |
Φ56 |
412-057 |
Φ57 |
412-058 |
Φ58 |
412-059 |
Φ59 |
412-060 |
Φ60 |
412-061 |
Φ61 |
412-062 |
Φ62 |
412-063 |
Φ63 |
412-064 |
Φ64 |
412-065 |
Φ65 |
412-066 |
Φ66 |
412-067 |
Φ67 |
412-068 |
Φ68 |
412-069 |
Φ69 |
412-070 |
Φ70 |
Product code |
Diameter |
412-071 |
Φ71 |
412-072 |
Φ72 |
412-073 |
Φ73 |
412-074 |
Φ74 |
412-075 |
Φ75 |
412-076 |
Φ76 |
412-077 |
Φ77 |
412-078 |
Φ78 |
412-079 |
Φ79 |
412-080 |
Φ80 |
412-082 |
Φ82 |
412-083 |
Φ83 |
412-085 |
Φ85 |
412-090 |
Φ90 |
412-095 |
Φ95 |
412-100 |
Φ100 |
412-102 |
Φ102 |
412-105 |
Φ105 |
412-110 |
Φ110 |
412-115 |
Φ115 |
412-118 |
Φ118 |
412-120 |
Φ120 |
412-125 |
Φ125 |
412-130 |
Φ130 |
412-135 |
Φ135 |
412-140 |
Φ140 |
412-145 |
Φ145 |
412-150 |
Φ150 |
412-160 |
Φ160 |
412-200 |
Φ200 |
- Possible for customization about other sizes
